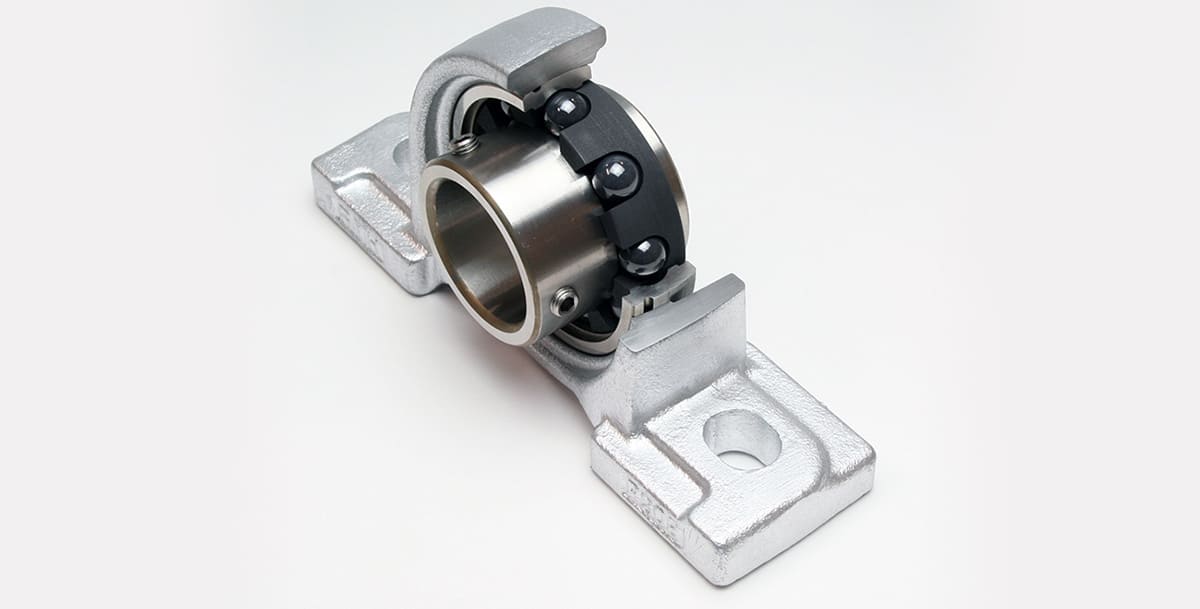

Ceramic bearing series

Ceramic bearing series01 | FYH INC. Features

the most reliable maintenance-free bearing

The Ceraball series exhibits extremely high antiabrasion qualities and offers remarkably stable performance in the most severe environments.


In 1984, for the first time in Japan, FYH succeeded in the production of total ceramic bearings from start-to-finish production of raw materials. Since that time, user feedback has confirmed that this series has proven itself as the ultimate choice for a multitude of special operating environments. After more than two decades of continual development, this series has been evaluated as “the most reliable maintenance-free bearing” for any industry, and it has evolved to include a variety of options to satisfy many specifi c needs.


Ceraball features

Reduced maintenance costs
Re-lubrication intervals can be signifi cantly extended or eliminated altogether.
Green bearings
Excessive grease discharge can be eliminated thereby contributing to a cleaner environment.
Independent operation
Supplementary items such as cooling devices and automatic grease replenishment systems can be eliminated.
Low friction
Low friction operation reduces the amount of energy required thereby saving electricity and money.
High stress resistance
The threat of shattering from foreign matter incursion is greatly reduced which creates a safer working environment.
Non-conductive
Electric arcing is eliminated.
Ceramic bearing series02 | FYH INC. Features

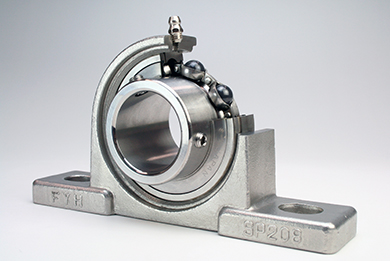

Y2
Ceramic bearing series03 | FYH INC. Features

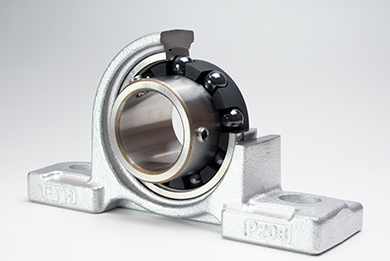

Y3

Super Heat Resistant Cera Ball Unit
Special symbolMaximum operating temperatureInner ring, outer ringGreaseSealFeature
(ºC)(ºF)
D9K6S6Y2230446Stainless steelFluorine-based greaseFluorine rubber Bearings used in temperatures exceeding 180 degree celsius are significantly degraded by the surface oxidation of the bearing steel, and the bearing ends in the early life. For this reason, stainless steel for bearings with low surface oxidation is adopted in the inner and outer rings, and that makes it possible to use it in maintenance-free by the combination with the Ceramic balls.
In addition, because there is deterioration of the fluorine seal at 230 degree celsius or higher, only slinger (Z seal) attached type is applicable.
D9P4S6Y2260500Stainless steelFluorine-based grease
S6Y3450842Stainless steelSolid self-lubricant Bearings exceeding 260 degree celsius are not normally available with grease lubrication. The FYH product exparts stable bearing performance for long periods of time under high temperature enviroment where grease lubrication does not work up to about 450 degree celsius by adopting solid self-lubricating materials developed independently. In general, the use of low-load low-rotational areas (DN value 5000 or less) is its main application.

Example of maintenance cost reduction

Ceramic bearing series04 | FYH INC. Features

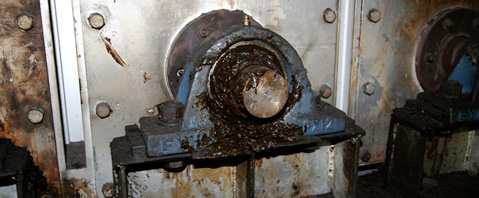

Standard unit with heat-resistance Daily lubrication, and replacement of the unit every 6 months.
Ceramic bearing series05 | FYH INC. Features

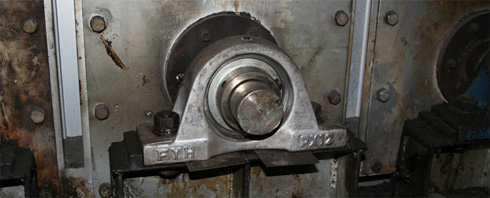

Ceraball unit In operation without lubrication. 5 years continuous operation.
